Instructions

CONTENTS AND INSTRUCTIONS FOR DRUJAM CAR WINDOW SAFETY LOCK.

Remove your Window Safety Lock from the packaging. You will have six parts to the lock;

•

•

•

•

•

•

•

*which you will only need dependent on the model/make of your car.
**This will be required for the Fiesta Mark 7 (2008-2018) -separate instructions below.

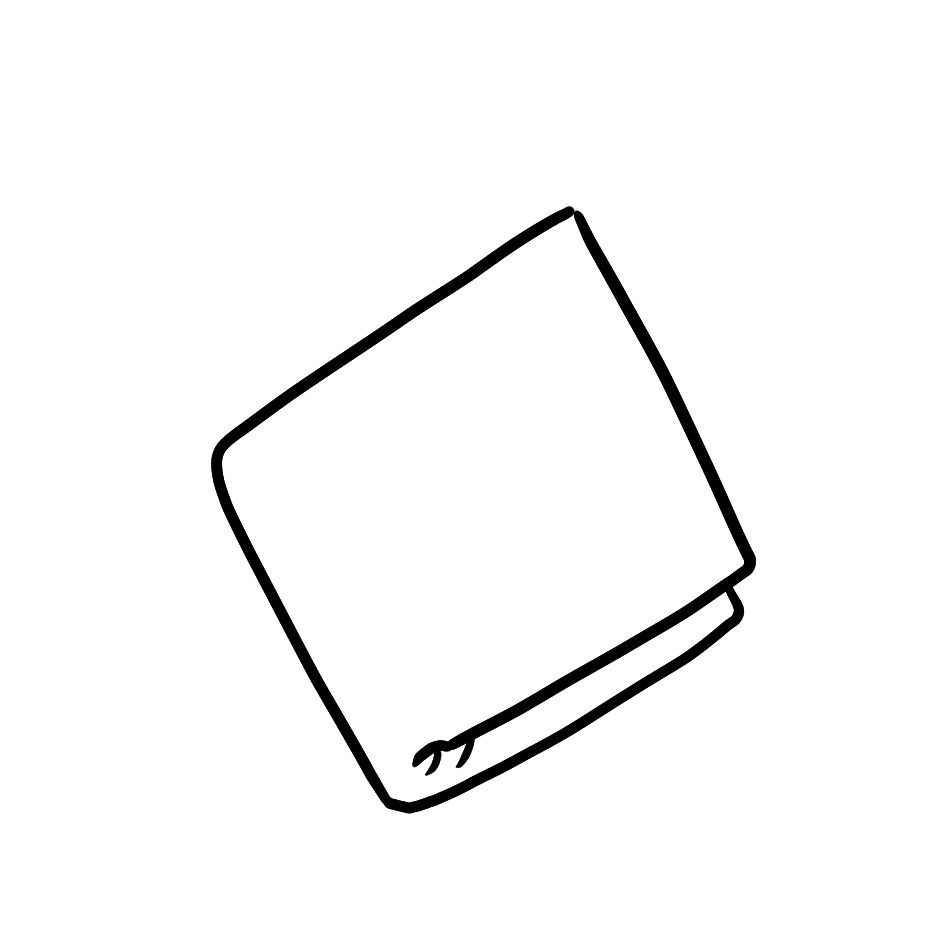

STICKY PADS ARE REUSABLE. JUST WASH IN WARM SOAPY WATER OR USE CLEANING WIPE AND ALLOW TO DRY THOROUGHLY.

IF YOU REQUIRE ADDITIONAL/REPLACEMENT PADS THESE CAN BE PURCHASED

INSTRUCTIONS FOR CAR WINDOW SAFETY LOCK

Before you start ensure your winder crank is all the way up as far as it will go and clean the area with soapy water or a damp cloth and dry thoroughly.

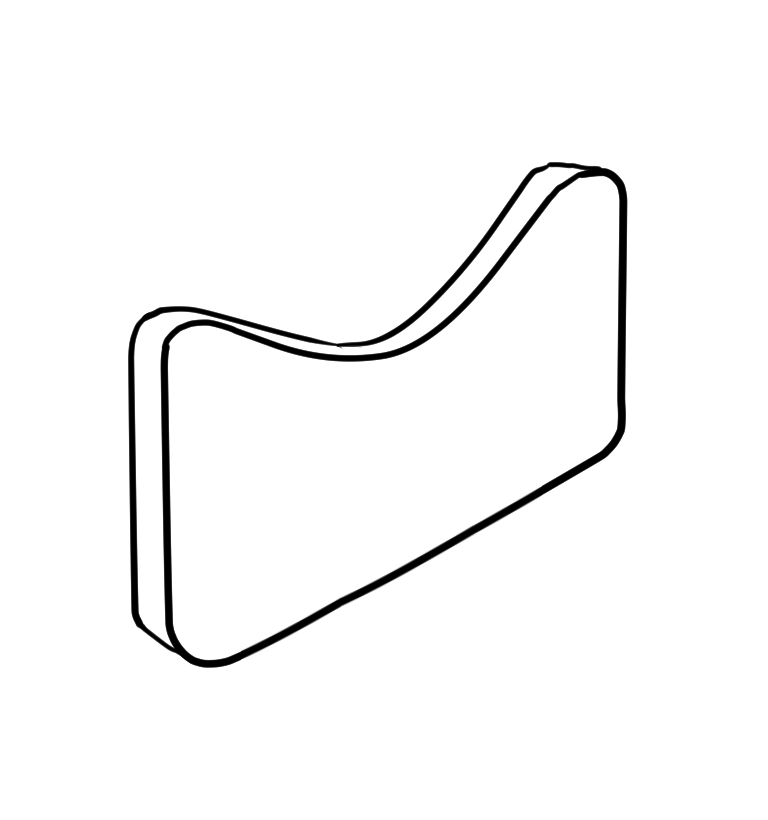

Peel the backing from one side of the sticky pad and attach to the base of the unit. Prior to peeling off the other side of the sticky pad cover, place the unit under the crank handle to check whether your particular model of car requires a riser to be attached (some don’t need any). Once you are happy that the lock fits your door panel securely with/without a riser, move on to step by step instructions.

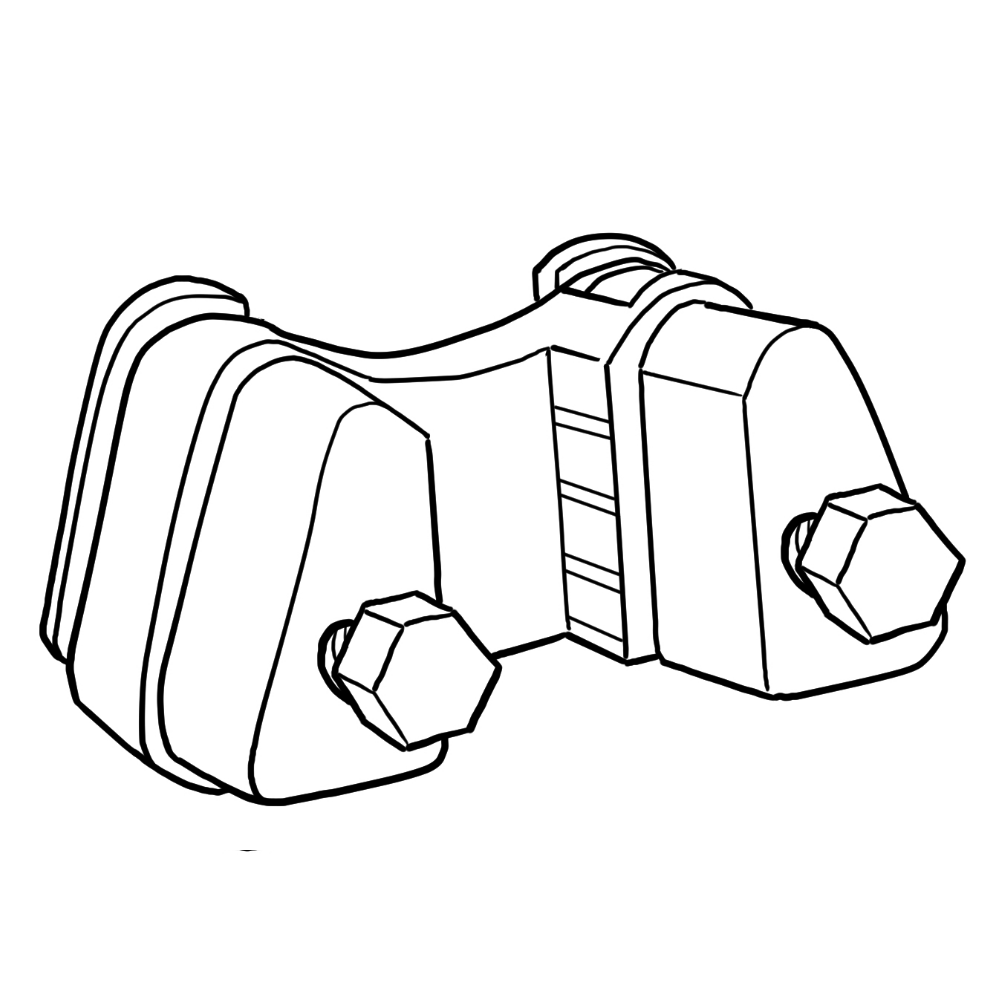

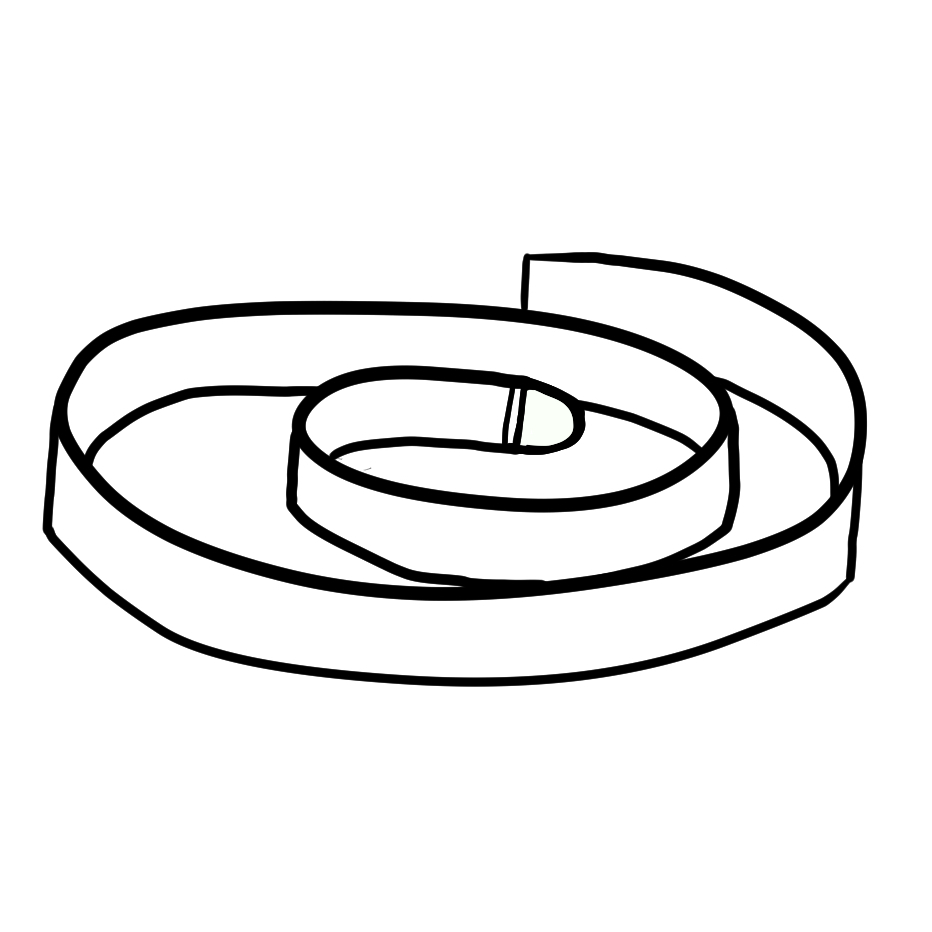

Connect the Velcro strap (3) around the device and feed the Velcro (pointed end) “up and over” through the loops on the left hand side of the window lock (1) first and then across the back of the device and down through the other loop on the right and pull the Velcro strap tight (as in diagram).

Peel the backing from the sticky pad and fit under the crank handle (be careful not to stick it to the door panel until in position) and push up towards the crank so it fits as snug as possible. Once in position press the device firmly on to the door panel to stick.

Wrap the Velcro strap fully around the whole of the device and crank handle tightly. There will be excess Velcro but this can just be double wrapped.

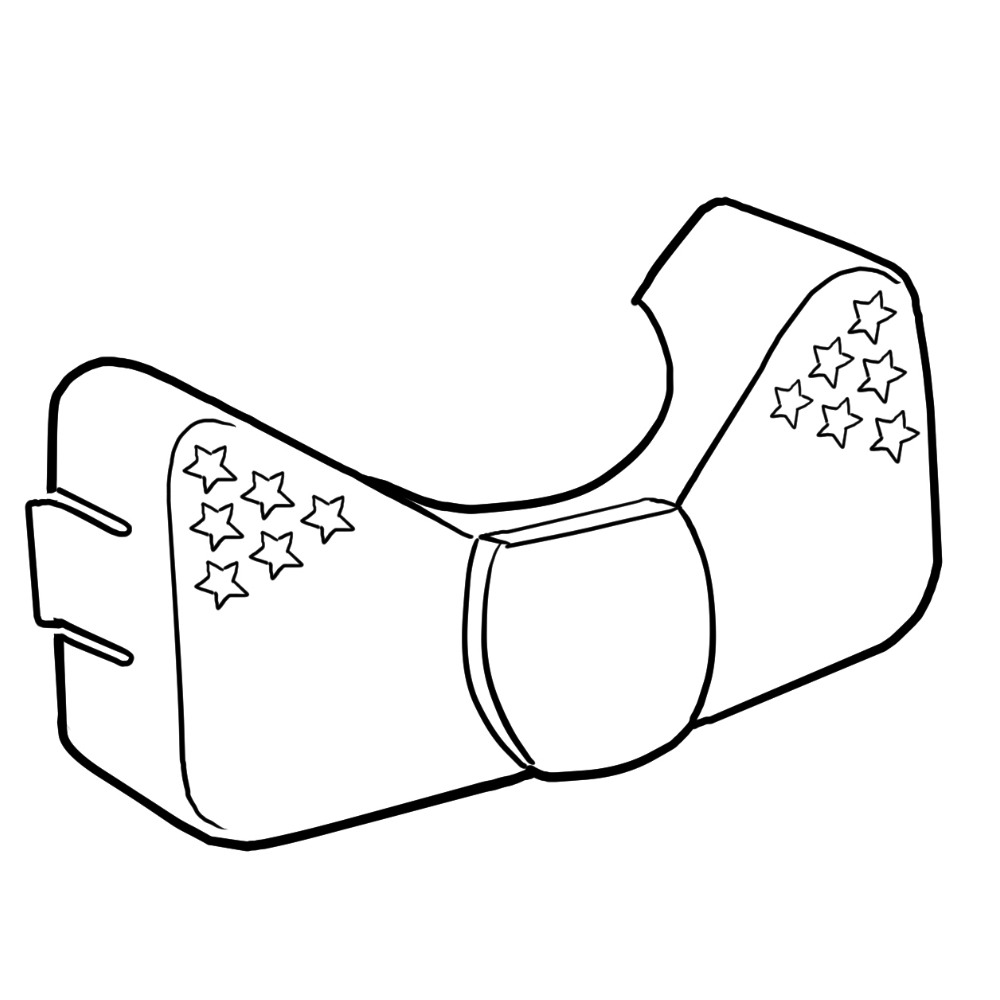

Turn the bolts until tight BUT DO NOT OVERTIGHTEN! Attach the top cap/lid (4). The lid may not be suitable for all cars and is dependent on length of door crank handle BUT this does not effect the lock in any way if not able to use as more for aesthetic purposes.

STICKY PADS ARE REUSABLE. JUST WASH IN WARM SOAPY WATER AND ALLOW TO DRY THOROUGHLY.
IF YOU REQUIRE ADDITIONAL/REPLACEMENT PADS THESE CAN BE PURCHASED

FORD FIESTA CAR MODELS (MARK 7 – YEARS 2008 TO 2018)

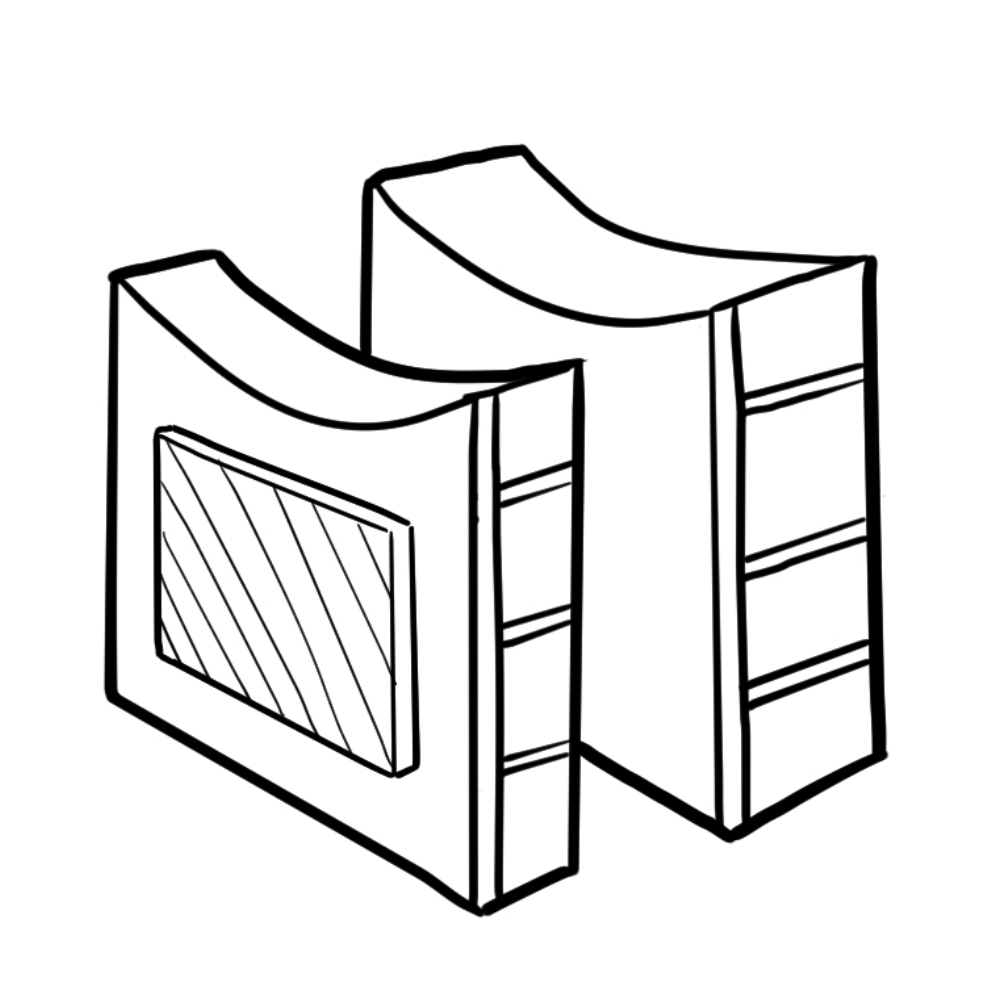

These models of cars will need the 20mm extension block (7) attached to the device in order for it to fit snugly to the internal door panel.
